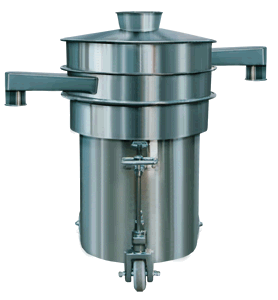

Vibro Sifter

Vibro Sifters are circular gyratory screens used to separate solids from solids and liquid from solid. Vibro Sifter consists of Specially Designed Motor mounted vertically at the center of the base plate of the Screen. The Screen is in between feeding hopper and bowl. The material is fed on to the centre of top screen. The undersize material passes rapidly through the screen during its travel to the periphery. The oversize material get continuously discharged through a tangential outlet. This is achieved by specially designed Vibratory Motor along with eccentric Top and Bottom Weights.

Salient Features

  • Noiseless, Maintenance free & high speeds
  • Available in various models providing screening diameter of 12", 20", 30", 36", 48", 72" etc
  • Portable and compact
  • Electric power requirement less than other machine of the kind in the industries & lower energy consumption compared to reciprocating vibratory system
  • Standard machine are with TEFC motor explosion proof / flame proof motor material
  • SS 316 quality contact parts
  • Special requirement like brushing arrangements, SS lid with charging port and spring loaded outlets
  • Easy dismantling and cleaning facility for contact parts
  • Wide range of screen sizes 4-300 Mesh
  • Double & Triple deck screens with outlet and hopper for bottom deck available on request

Process Operation

This vibrating energy screen is unit consisting of circular pre-tensioned screen mounted on the frame along with vibrating motor. The vibrating motor imparts three plane vibrations to the screen due to revolving eccentric weights. Total assembly is mounted on suitable springs so that it becomes a independent body which vibrates without parting any vibrations to the foundations.

Technical Specification

Model 20 30 60
Screens S.S. 304 S.S. 304 S.S. 304
Screen Diameter 515 mm 750 mm 915 mm
Output 150 kgs./hour 200 kgs./Hour 250 kgs./Hour
Charging Height 1110 mm 1250 mm 1250 mm
Discharging Height 690 mm 790 mm 790 mm
Power Supply 0.50 H.P. 0.75 H.P. 1.00 H.P
